The extraction of protein from plants using the cellulase enzyme. In addition, the extracted proteins were characterized including, protein solubility, proximate analysis, Fourier transform infrared spectrometer (FTIR), SDS-pages, emulsifying and foaming.

Rice bran is a by-product of the rice milling process, which is classified as a waste. However, there has been research done earlier; found that rice bran contains a massive number of proteins when compared to other plants. The extraction of plant proteins using cellulase enzymes is considered because the great nutrition is revealed, in which there is a comparison of extraction in many circumstances to get the best conditions.

* corresponding author (

Received: 29 February 2020, Accepted: 05 July 2020, Published: 31 December 2020

DOI: 10.5281/zenodo.4383342 | 📁 view PDF file


In recent years, there has been an increment in demand for functional food and market size of proteins and peptides in the Asia Pacific was up to 2,185 million US dollars in 2014 (Thamnarathip, et al. 2016). With increasing health and environmental concerns, plant-based proteins have become more popular. The problem associated with plant-based proteins is the less variety of amino acids each source can provide. Moreover, phytoestrogens (plant-produced estrogens) found in soy protein have been reported to affect the hormone level of a consumer. Hence, a variety of sources of plant-based protein are necessary. The quantity of the proteins extracted can be used to determine the viability of this extraction method for commercial uses. Rice brands, however, contain a large proportion of protein and there have been various reports regarding extraction of protein from rice bran. The extraction is often done after rice bran oil extraction. This seems to be advantageous as rice brans after the oil extraction are thrown away. Nevertheless, little work has been done on the extraction of protein from rice brans at a large scale.


In this experiment, three enzyme amounts (cellulose) were investigated including 6500, 13,000 and 26,000 U/ml. As for the extracting time, initially, 4 hours is investigated, along with the extraction time for 2 hours and 1 hour. This will result in 9 total variations of unique conditions in the investigation of enzyme activity.

10 grams of rice brans was mixed with 75 ml of distilled water. After that, the mixtures were then heated to 50oC for 30 minutes. Various enzyme activities and extracting time were used. The time longer than 4 hours was not considered as it would take too long for practical use in the industrial process (Watanabe et al., 1990). At the end of the extraction by the enzyme, each batch was then centrifuged at 3000 rpm for 30 minutes. Next, the supernatant layer was separated and the pH was adjusted to 10 in order to inactivate the enzyme. The protein solution was kept at 20oC. When this has been done, the protein solution was powdered using freeze-dry method. And this powder was then kept for further characterization; protein solubility, proximate analysis, FTIR, SDS-pages, emulsifying and foaming.


Figure 1 shows that the most effective enzyme activity and time used in protein extraction from Sangyod rice brans are 26,000 U/ml and 4 hours respectively. Moreover, it is found that protein yield is slightly increased after 4 hours, in which 4 hours is the optimum time for extraction that yields are closest the highest amount of protein. As regards to the protein mass contents, at 4 hours of 26000 U/ml enzyme activities contains the highest protein amount, which is obtained 87.36, 85.63 and 84.81 microgram protein from 20 microliters of the sample and the average protein mass is 85.93 microgram. Therefore, 0.322 gram of protein is obtained from 75 mL of the total sample solution, which is originally mixed with 10 grams of rice bran. (yield is approximately 3.22% on average).

Discussion and Conclusion

This study of enzymatic extraction from rice brans is applied to Sangyod rice brans from Thailand, enzymatic methodologies are applied as a substitution for alkaline and other extraction methods. In addition, this can be applied for industrial process of manufacturing protein supplements or other products for economic and social benefits.

From the experiments, it was found that the optimum condition is 50oC, the extraction time is 4 hours and the enzymatic activity is 26,000 U/ml. The result is intuitive since the increase in either the extraction time or the enzymatic activity simultaneously increases the protein yield in the experiments. Furthermore, this study also focuses on the characterization of the proteins that were extracted from the previous steps. This research has selected the methods that are important to the properties of the rice brans that will be important for mass production in this category of products.

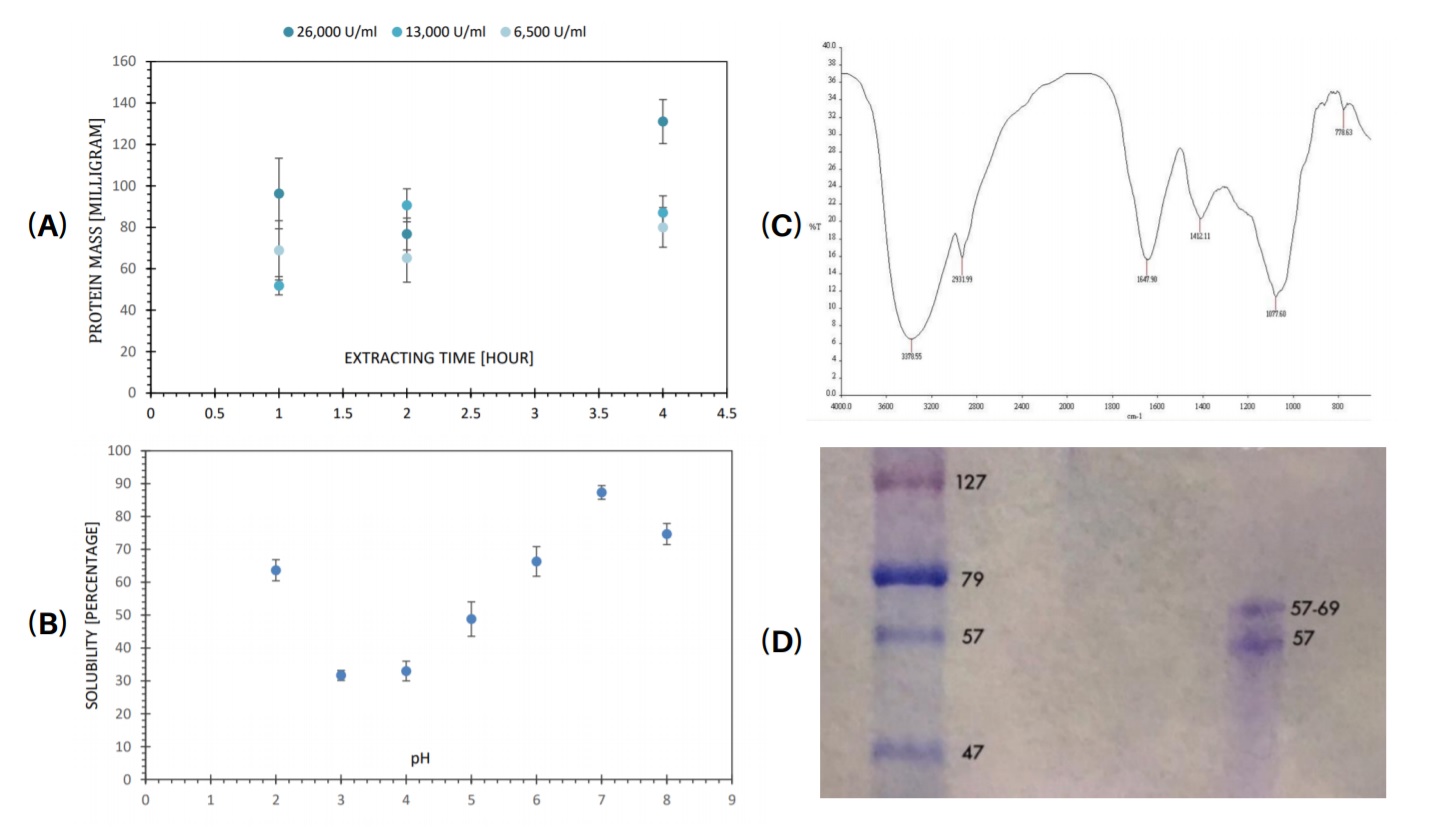

Figure 1

Figure 1: (A) The results of protein mass from cellulase activity: 6,500, 13,000 and 26,000 U/ml and the time used: 1, 2 and 4 hours. (B) The protein solubility results. (C) The FTIR results. (D) SDS-PAGE results for the extracted Rice brans proteins.

About the authors

Miss Suriphon Siwongsa is a former student of Thammasat University, Thailand (Bachelor’s degree) and currently studying in Master’s degree Chemical engineering of Budapest University of Technology and Economics in Hungary. This research was done when she was a Bachelor student in collaboration with Assoc Prof Dr Phanida Saikhwan, PhD, Cambridge, UK, from the Department of Chemical engineering, Thammasat School of engineering. Assoc. Prof. Dr Phanida Saikhwan is the major contributor to this work for the initial idea, project design, and laboratory experiments.


This project acknowledges the funding support from Thammasat university research fund and the excellent support from Thammasat School of engineering and Mahidol University for the laboratory facilities.


  • Thamnarathip P, Nitisinprasert S, Vardhanabhuti, B. (2016) Identification of peptide molecular weight from rice bran protein hydrolysate with high antioxidant activity. Journal of Cereal Science, 69, 329–335.
  • Watanabe Y, Ikeuchi Y, Tamai Y. (1990) Identification and characterization of a thermolabile antigen (TLAa, enolase) in Saccharomyces cerevisiae. Agric Biol Chem 54(10):2543-51.
